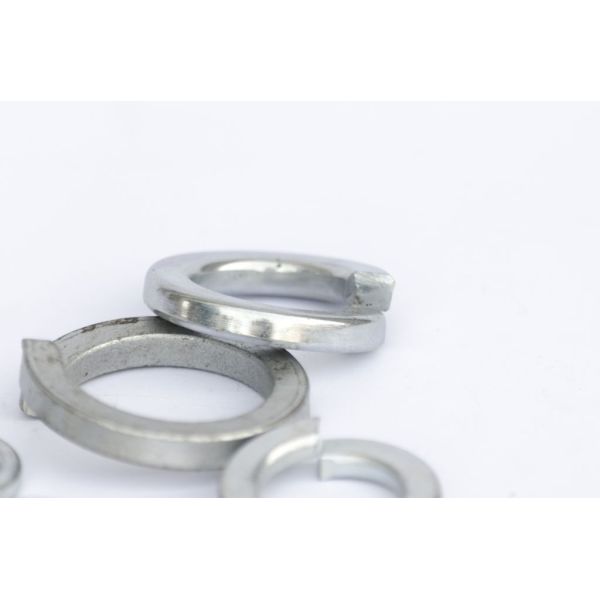

DIN 127 Duplex Stainless Steel Fasteners Stainless Steel 2507 Spring Washer

Brand Name : HT

Model Number : F53 2507 S32750 1.4410

Certification : ISO, SGS, BV, TUV

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 sets per month

Delivery Time : 20-25 days

Packaging Details : carton case+wooden case or wooden pallet or as per the clients' request

Product Name : F53 2507 S32750 1.4410

Size : M6-M64

Surface : cold galvanized, PTFE, Zinc Nickel, Plain

Producing standard : DIN, ASME

Type : bolt nut washer

Package : carton+wooden case

Contact Now

DIN 125 Duplex Stainless Steel Fasteners Stainless Steel 2507 Plain Washer

1.DIN 127 A Spring Lock Washers, Form A

DIN 127 Duplex Stainless Steel Fasteners Stainless Steel 2507 Spring Washer

DIN 127 A Dimensions

Size	For thread	d1 min.	d1 max.	d2 max.	b	s	h min.	h max.	k	r	Weight kg /1000pcs
3	M3	3.1	3.4	6.2	1.3 ± 0.1	0.8 ± 0.1	1.9	2.1	0.15	0.2	0.11
3.5	M3.5	3.6	3.9	6.7	1.3 ± 0.1	0.8 ± 0.1	1.9	2.2	0.15	0.2	0.12
4	M4	4.1	4.4	7.6	1.5 ± 0.1	0.9 ± 0.1	2.1	2.5	0.15	0.2	0.18
5	M5	5.1	5.4	9.2	1.8 ± 0.1	1.2 ± 0.1	2.7	3.2	0.15	0.2	0.36
6	M6	6.4	6.5	11.8	2.5 ± 0.15	1.6 ± 0.1	3.6	4.2	0.2	0.3	0.83
7	M7	7.1	7.5	12.8	2.5 ± 0.15	1.6 ± 0.1	3.6	4.2	0.2	0.3	0.93
8	M8	8.1	8.5	14.8	3 ± 0.15	2 ± 0.1	4.6	5.4	0.3	0.3	1.6
10	M10	10.2	10.7	18.1	3.5 ± 0.2	2.2 ± 0.15	5	5.9	0.3	0.5	2.53
12	M12	12.2	12.7	21.1	4 ± 0.2	2.5 ± 0.15	5.8	6.8	0.4	1	3.82
14	M14	14.2	14.7	24.1	4.5 ± 0.2	3 ± 0.15	6.8	8	0.4	1	6.01
16	M16	16.2	17	27.4	5 ± 0.2	3.5 ± 0.2	7.8	9.2	0.4	1	8.91
18	M18	18.2	19	29.4	5 ± 0.2	3.5 ± 0.2	7.8	9.2	0.4	1	9.73
20	M20	20.2	21.2	33.6	6 ± 0.2	4 ± 0.2	8.8	10.4	0.4	1	15.2
22	M22	22.5	23.5	35.9	6 ± 0.2	4 ± 0.2	8.8	10.4	0.4	1	16.5
24	M24	24.5	25.5	40	7 ± 0.25	5 ± 0.2	11	13	0.5	1.6	26.2
27	M27	27.5	28.5	43	7 ± 0.25	5 ± 0.2	11	13	0.5	1.6	28.7
30	M30	30.5	31.7	48.2	8 ± 0.25	6 ± 0.2	13.6	16.1	0.8	1.6	44.3
36	M36	36.5	37.7	58.2	10 ± 0.25	6 ± 0.2	13.6	16.1	0.8	1.6	67.3
39	M39	39.5	40.7	61.2	10 ± 0.25	6 ± 0.2	13.6	16.1	0.8	1.6	71.7
42	M42	42.5	43.7	66.2	12 ± 0.25	7 ± 0.25	15.6	18.4	0.8	2	111
45	M45	45.5	46.7	71.2	12 ± 0.25	7 ± 0.25	15.6	18.4	0.8	2	117
48	M48	49	50.6	75	12 ± 0.25	7 ± 0.25	15.6	18.4	1	2	123
52	M52	53	54.6	83	14 ± 0.25	8 ± 0.25	18	21.2	1	2	162
56	M56	57	58.5	87	14 ± 0.25	8 ± 0.25	18	21.2	1	2	193
60	M60	61	62.5	91	14 ± 0.25	8 ± 0.25	18	21.2	1	2	203
64	M64	65	66.5	95	14 ± 0.25	8 ± 0.25	18	21.2	1	2	218
68	M68	69	70.5	99	14 ± 0.25	8 ± 0.25	18	21.2	1	2	228
72	M72	73	74.5	103	14 ± 0.25	8 ± 0.25	18	21.2	1	2	240
80	M80	81	82.5	111	14 ± 0.25	8 ± 0.25	18	21.2	1	2	262
90	M90	91	92.5	121	14 ± 0.25	8 ± 0.25	18	21.2	1	2	290
100	M100	101	102.5	131	14 ± 0.25	8 ± 0.25	18	21.2	1	2	318

2. Alloy 2507 Applications

Oil and gas industry equipment
Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
Chemical process industries, heat exchangers, vessels, and piping
Desalination plants, high pressure RO-plant and seawater piping
Mechanical and structural components, high strength, corrosion-resistant parts
Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping

3. Why Choose us?

Constructive solutions	A wealth of expertise and experience for 20 years insure us to provide the most Valuable solution to customers.
Competitive price	Under the precondition of quality assurance,we provide the price more competitive than the average level in market.
One stop shopping	We are manufacture and also wholesale,a great variety of goods can meet with one stop shopping of customer,saving precious time and reducing the cost greatly.
Integrity	We do business based on integrity, the good faith management is our principle for 20 years, expect to set up long term cooperation with every customer.

4. FAQ

Q1: How long we can get the quotation after inquiry?
Generally within one working day.

Q2: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra?
Yes, we could offer the sample for free charge within a certain number but do not pay the cost of freight.

Q4: What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

Q5: How to ensure that every process's quality?
Quality is the life line of our company,we would like to provide the best quality to our customer to implement long term cooperation for win-win.

DIN 127 Duplex Stainless Steel Fasteners Stainless Steel 2507 Spring Washer
